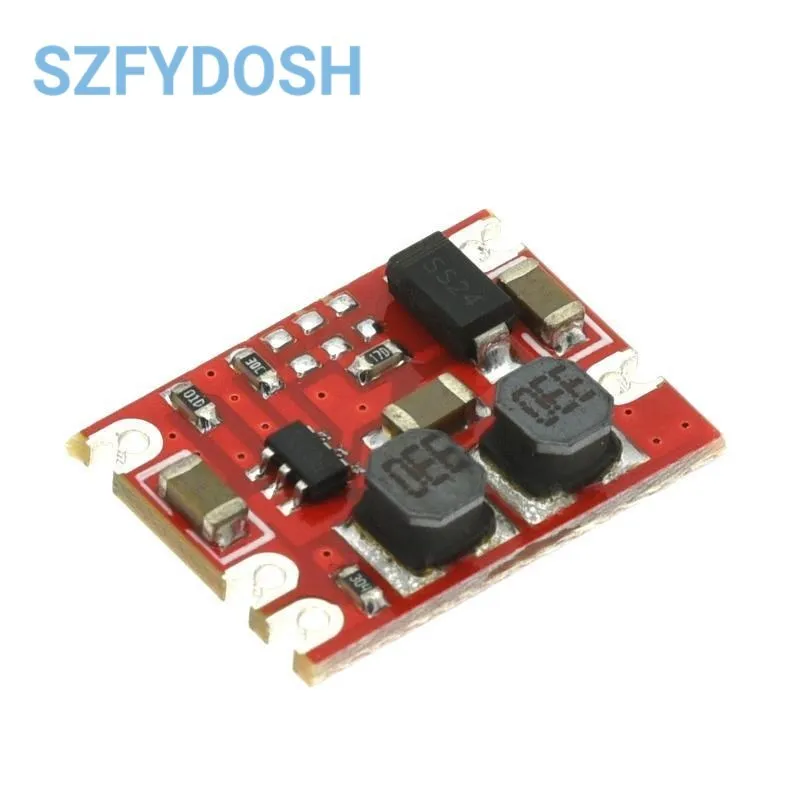

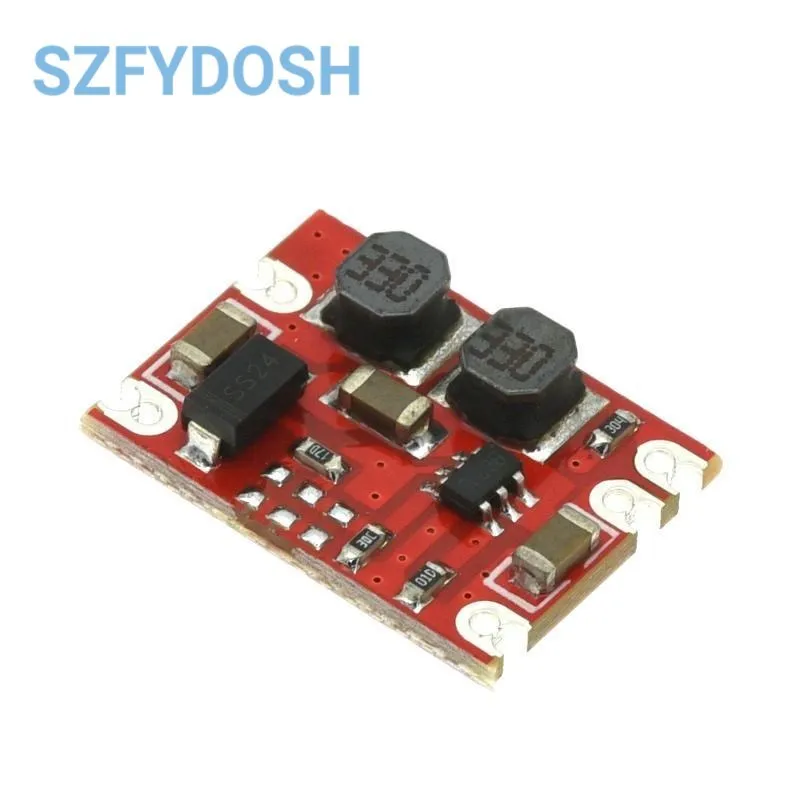

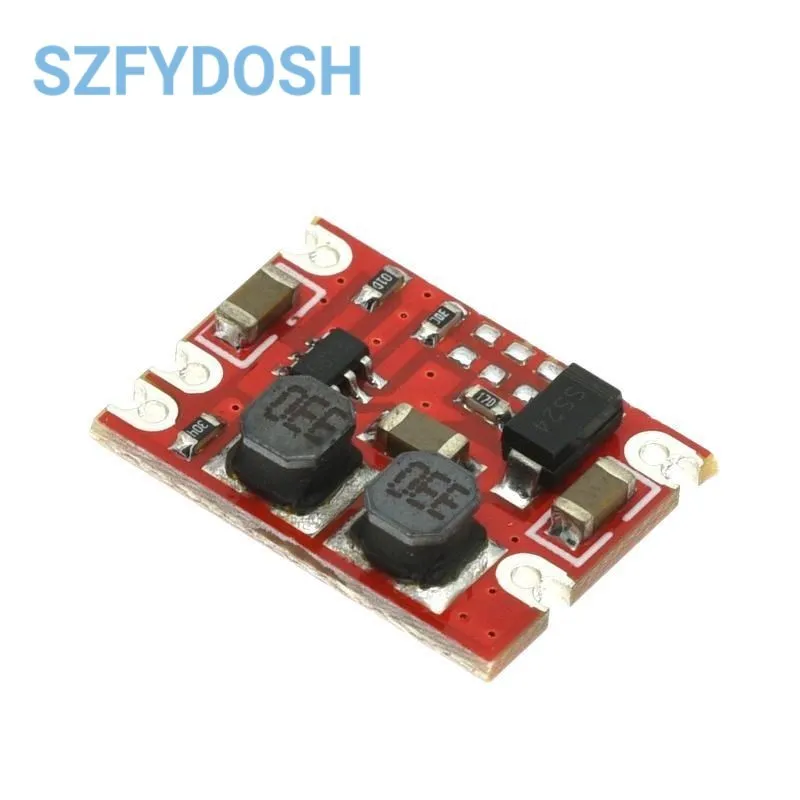

Модуль перетворювача DC-DC 2.5-15V to 12V

Description

Product Description:

The S09 a wide voltage and low power scheme.   The DC-DC power module is automatically raised and lowered to support the shutdown function.   The maximum input voltage is 15VDC, the quiescent current is less than 200uA, the fixed output is 3.3V and the maximum output current is 600mA.   Design work frequency of up to 1.2MHZ, high stability, cost-effective, all industrial-grade components, long working voltage drift-free, suitable for demanding applications, mass production.

Application:

Widely used in communications equipment, digital radio, industrial motherboards, toys, model aircraft, microcontroller motherboards, household electrical appliances, automotive power supply, security monitoring, field collection, street lamps.

Specifications:

input voltage:2.5V-15V

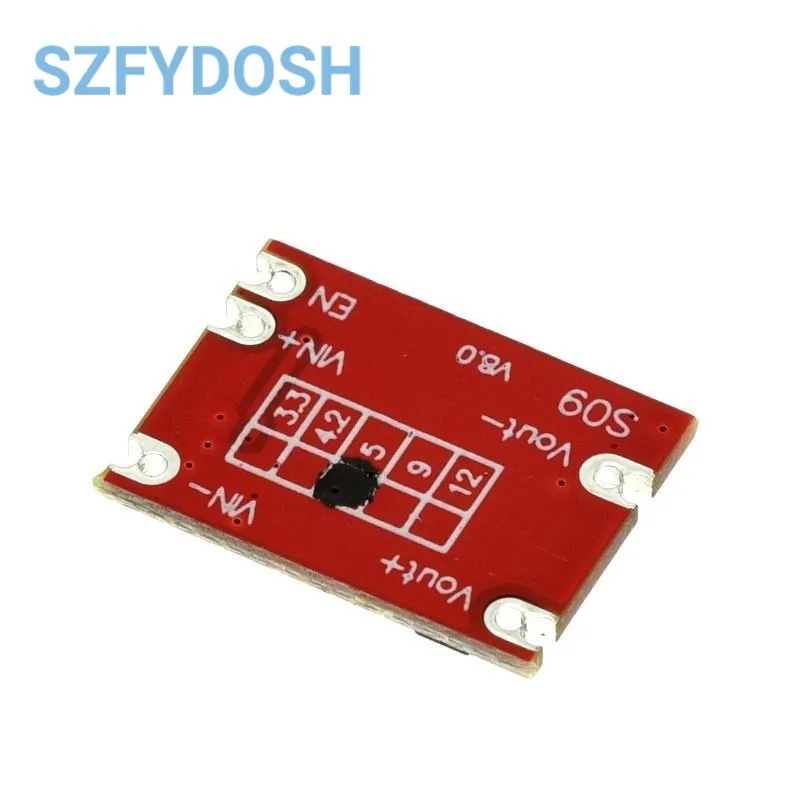

output voltage:3.3V/4.2V/5V/9V/12V

output current:0.6A

conversion efficiency:75%

output ripple:<50mV

output accuracy:+-0.1V

working temperature:-20 - +85 celsius

relative humidity:20-90%

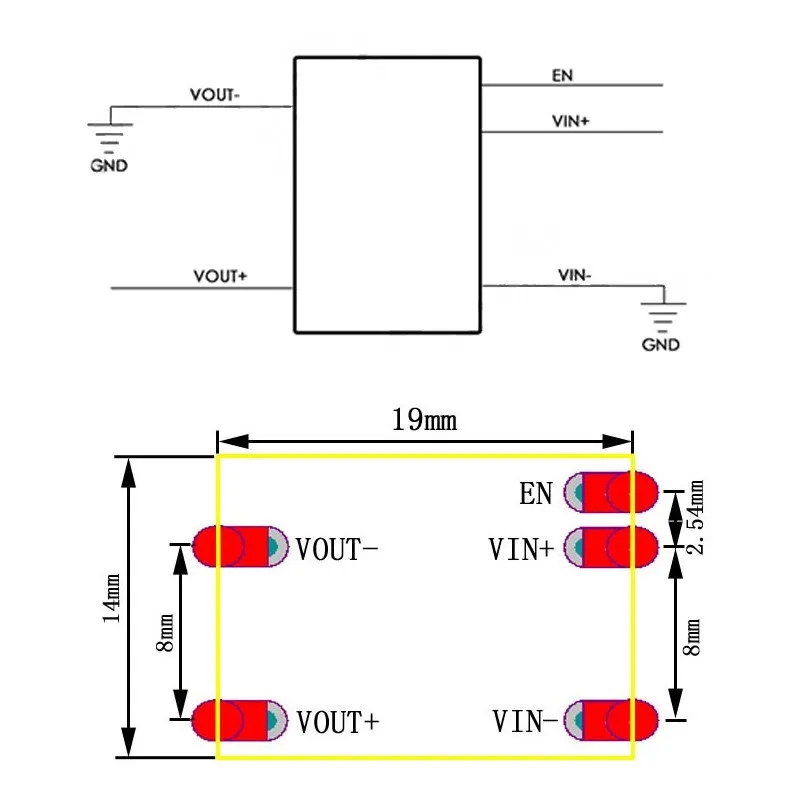

size:19mm*14mm*4.2mm

pcb layers:2 layers

current control:with cut off

cooling method:cooling nature

installation method:SMD or 2.54mm pin

production process:reflow

isolated:no

design aging standards:720 hours without trouble

production factory aging standards:48 hours

service life:35000 hours without trouble

inspection standards 3 times:all(Ex-factory test + in-store test)

fixed switching frequency:1200khz
